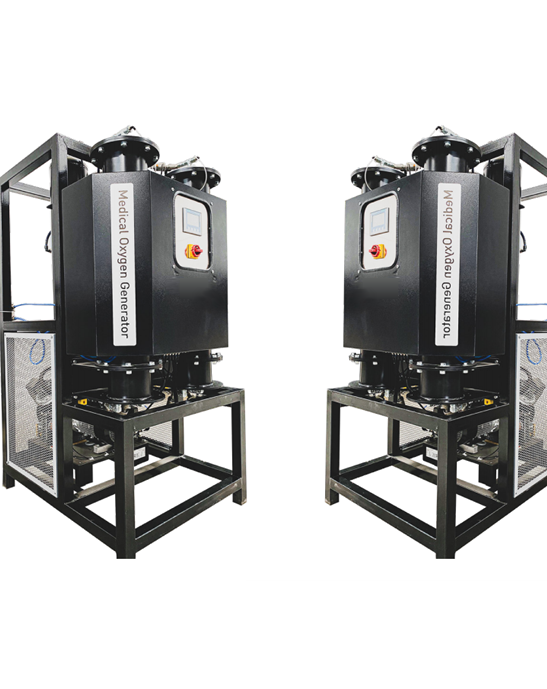

Compact 3 | Medical Oxygen & Nitrogen Unit

Compact Model Medical Oxygen Generators can produce 3Nm³/hr oxygen gas with 95% Oxygen concentration. When only electricity is supplied, these dependable and advantageous generators can provide both Medical Oxygen and Medical Air For your demand.

Features:

  • Produces oxygen from atmosphere air.
  • Microprocessor controlled
  • Plug & Play with Compact dimensions.
  • Automatic and unattended operation.
  • Solar power Charging System. (Optional)
  • All in one Designed Medical Oxygen Generator for especially Small Institutions, Having Limited Space.
  • Up to 10 hours Uninterruptible Power Supply system. (Optional)
  • Easy Instalation & Operation and Maintenance.
  • Touchscreen control panel with integrated oxygen concentration monitor

Typical Applications:
Manufacturing: Cutting/Brazing/Soldering Cutting/Bra zing/Soldering
Medical: Hospital Systems
Environmental: Ozone (Generator) Feed Gas, Environmental Remediation, Waste/Water Treatment
Glass Industry: Glass Work/Manufacturing/Blowing
Additional: Fish Farming

Category:

Description

Compact 3 | Medical Oxygen Unit

Product Characteristics Compact 3
Product Flow & Purity 3 Nm³ Oxygen Capacity & 3Nm³ Medical Air
Product Pressure 4 Bar(g)
Design Single Skid (Plug & Play)
Noise 55 dB (A)
Ambient Air (Dry Ventiled) Locate the oxygen unit in a well ventilated area that is protected from weather elements and remains between 5°C and 45°C
Dimentions(WxDxL) 100cm x 120cm x 200cm (Basic Unit)
Physical Connections

Power Supply

 G1/2 Oxygen/Medical Air Outlet

220V 50hz 3 Phase (5 KWh Max)
Gross Weight 300 Kg

Control Unit

Touchscreen (colored) with PLC: Siemens S7 – 1200

Oxygen Analyser: on- Screen (Zirconia Oxygen Sensor)

Warranty: 2 Years Parts and Factory Labor***

  • *** An unprotected or inadequately ventilated environment, or improper control power may cause damage to the oxygen generator not covered under warranty.
  • Specify oxygen flow and pressure at time of order.
  • All performance ratings based on an ambient temperature up to 38°C, up to elevation, and 80% relative humidity.
