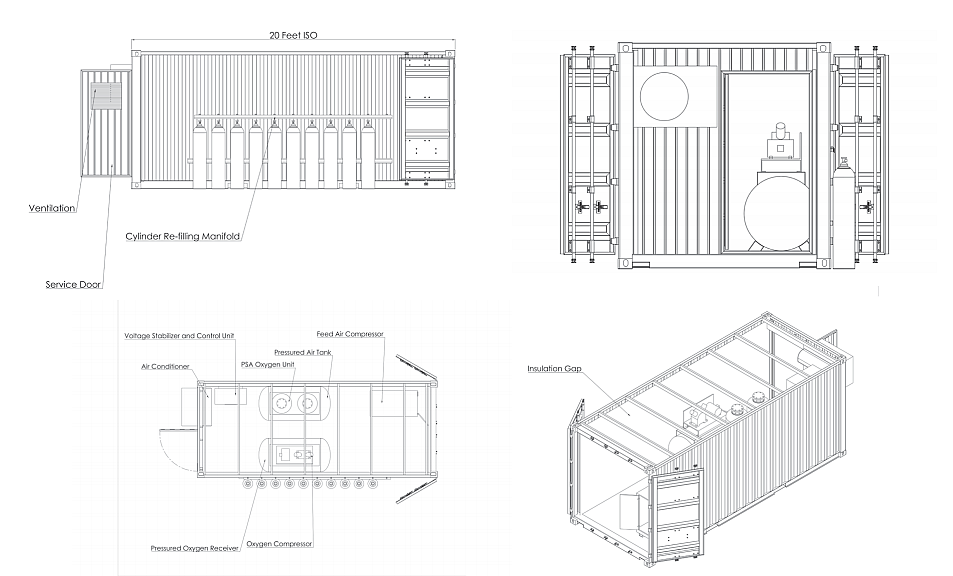

MP25 model mobile oxygen-generating and cylinder filling container plants can produce 12 Nm³/hr oxygen gas flow at 95% oxygen concentration and can fill cylinders with the capacity of 9 Nm³/hr When electricity is supplied, these dependable machines can provide oxygen and fill the empty cylinders for any application.

Features:

• Produces oxygen from atmosphere air.
• Microprocessor controlled
• Low operating cost
• Automatic and unattended operation
• Easy to install and maintain
• Touchscreen control panel with integrated oxygen concentration monitor

Typical Applications:
Manufacturing: Cutting/Brazing/Soldering Cutting/Bra zing/Soldering
Medical: Hospital Systems
Environmental: Ozone (Generator) Feed Gas, Environmental Remediation, Waste/Water Treatment
Glass Industry: Glass Work/Manufacturing/Blowing
Additional: Fish Farming

Control Unit

Touchscreen (colored) with PLC: Siemens S7 – 1200

Oxygen Analyser: on- Screen (Zirconia Oxygen Sensor)

Warranty: 2 Years Parts and Factory Labor***

• *** An unprotected or inadequately ventilated environment, or improper control power may cause damage to the oxygen generator not covered under warranty.
• Specify oxygen flow and pressure at time of order.
• All performance ratings based on an ambient temperature up to 38°C, up to elevation, and 80% relative humidity.
