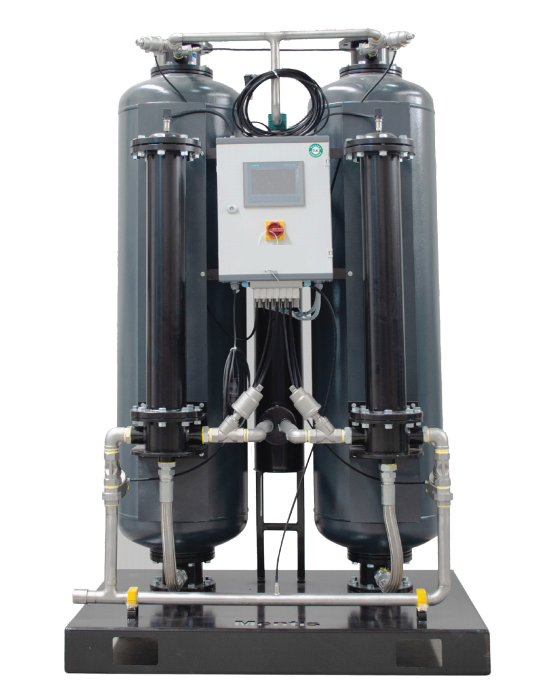

S-PSA10 | PSA Oxygen & Nitrogen Generator

You will able to produce up to 99% oxygen concentration according to production modes and your consumption demand with PrepAir SPSA10 model Oxygen Generator. When electricity and a source of compressed air are supplied, these dependable machines can provide oxygen for any application.

Typical Applications:
Manufacturing: Cutting/Brazing/Soldering Cutting/Bra zing/Soldering
Medical: Hospital Systems
Environmental: Ozone (Generator) Feed Gas, Environmental Remediation, Waste/Water Treatment
Glass Industry: Glass Work/Manufacturing/Blowing
Additional: Fish Farming

Category:

Description

S-PSA10 | PSA Oxygen Generator

Product Characteristics M S-PSA10 M S-PSA10
Product Flow 10 Nm_/hr1
Product Pressure 6 Bar – 85 psig
Product Concentration (nominal) 95% +-1%
Product Dew Point -73°C
Dimensions (W x D x H) (Nominal) 140x110x160cm
Weight 800 kg
Physical Connections Compressed

Air Inlet Product Gas Outlet

 1⁄2” NPT

3⁄8” NPT
Ambient Operating Conditions Locate the oxygen generator in a well-ventilated area that is protected from weather elements and remains between 4°C and 40°C
Feed Air Requirements Feed Air Flow Rate: 96m_/hr Clean and Dry “Plant Air” (Class 5.6.5 per ISO 8573.1) Pressure: 7 bar -100 psig minimum maximum Temperature: 50°C maximum
Control Power Requirements

(Single Phase)

 220 V ~ ±10%, 50/60 Hz,3.0 A
